Product Details:
Payment & Shipping Terms:
|
| Production Name: | AODD Pump | Maximum Lift: | 70m |
|---|---|---|---|
| Weight: | 12.3kg | Maximum Particle Size: | 3mm |
| Application: | Wastewater Treatment | Feature: | Low Air Pressure |
| Highlight: | air operated double diaphragm aodd pumps,positive displacement diaphragm pump |
||

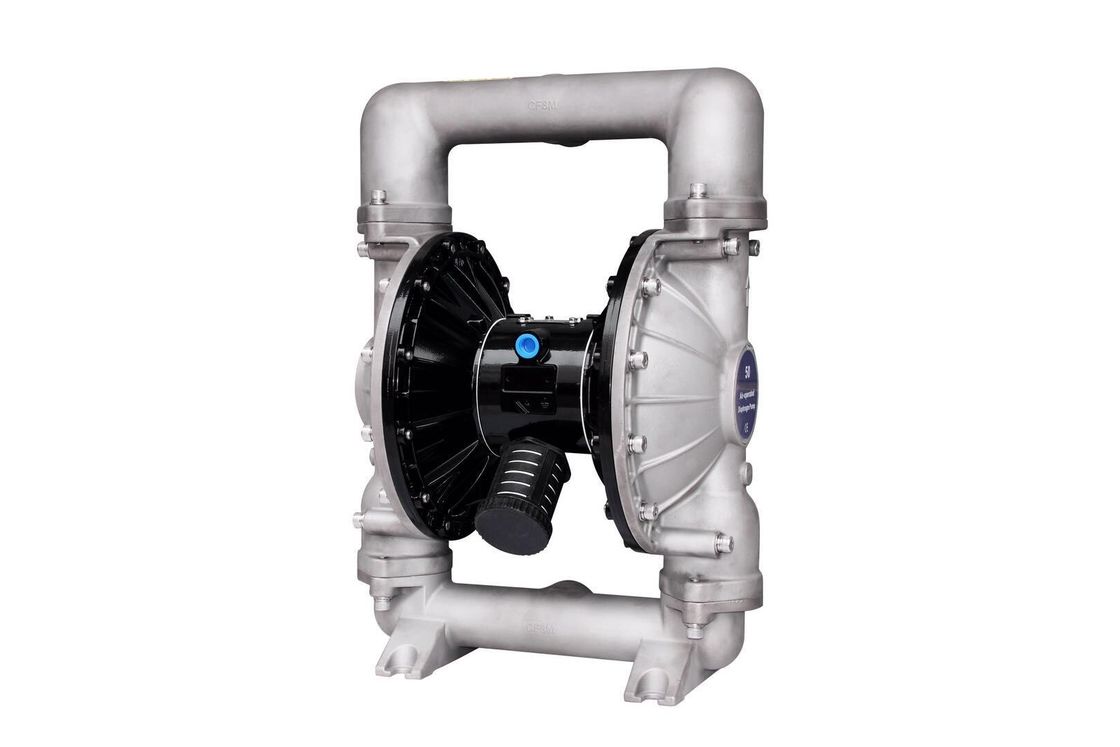

Wastewater Treatment AODD Pump High Volume Delivery Low Air Pressure
AODD Pump Features
1. No electrical motor - non sparking.
2. No mechanical seals or gland packing.
3. The pumps can run dry indefinitely without damage.
4. Safe for use in hazardous/explosive environments.
5. Variable flow - simply regulate the inlet air supply to adjust the pump flow from zero to max.
6. If discharge is clogged or closed pump stops immediately; no power consumed, no wear.
By opening discharge, flow starts automatically.
7. Self-priming from a dry start up to 6 meters without a foot valve.
8. Pressure up to 100 PSI (7 bar).
9. Operates submerged or with flooded suction.
10. No close fitting, sliding or rotating parts so can handle a wide range of fluids with high solid content.
AODD Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | 1/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
AODD Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
AODD Pump Application
