| Product Name: | Pneumatic Diaphragm Pump | Custom Made: | Yes |
|---|---|---|---|
| Maximum Lift: | 70m | Size: | 3 Inch |
| Feature: | High Pressure | Application: | Liquid , High Viscosity Transfer |
| Highlight: | pneumatic operated diaphragm pump,pneumatic air pump |
||

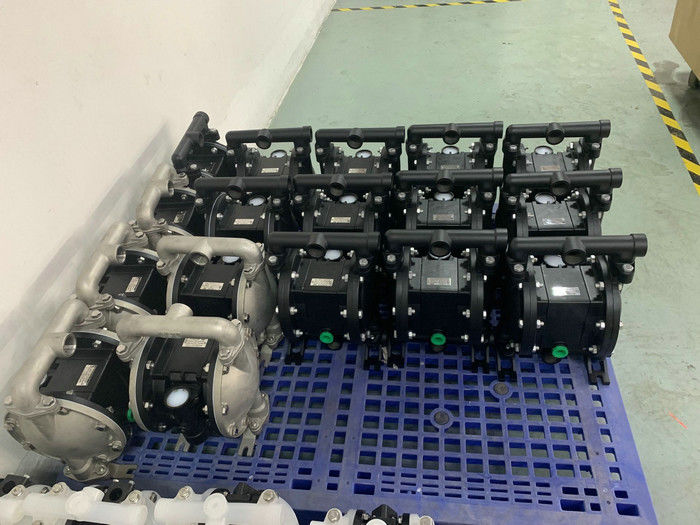

Custom Made Pneumatic Diaphragm Pump For Liquid , High Viscosity Transfer
Pneumatic Diaphragm Pump Introduction
Pneumatic Diaphragm Pump is a new transport machinery , is currently one of the most
innovative pump . Using compressed gas as a power source for a variety of corrosive liquid
, with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pump
ed optical exhaustion . There are four pneumatic diaphragm material: plastic , aluminum, cast
iron , stainless steel. Pneumatic diaphragm pumps were used nitrile rubber,neoprene , Viton ,
, depending on the liquid medium , poly ethylene fortysix . To meet the needs of different
users . Placed in a variety of special occasions , for pumping a variety of conventional pumps can
not pump the media , have achieved satisfactory results.
Pneumatic Diaphragm Pump Application
Chemical industry: acid, alkali, solvent, suspended solids, dispersion system.
Petrochemical industry: heavy oil, grease, mud, sludge and so on.
Coating industry: resin, solvent, coloring agent, paint and so on.
Cosmetics industry: detergent, shampoo, lotion, emulsion, hand cream, surfactant.
Ceramics industry: mud, porcelain pulp, lime slurry, clay pulp.
Mining industry: coal slurry, magma, mud, mortar, lubricants and so on.
Water treatment: lime slurry, soft precipitates, age, chemicals, waste water.
Food industry: liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey.
Pneumatic Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 903 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 9 |
| 6 | Weight | kg | 103 |
| 7 | Noise level | db | ＜70 |
Pneumatic Diaphragm Pump Details
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ·················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton···················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar··················································10°-200°F (-28.9°- 65.5°C) Polypropylene·······································32°- 175°F (0-79.4°C)
3" Flow diagram
Installation dimensions:
