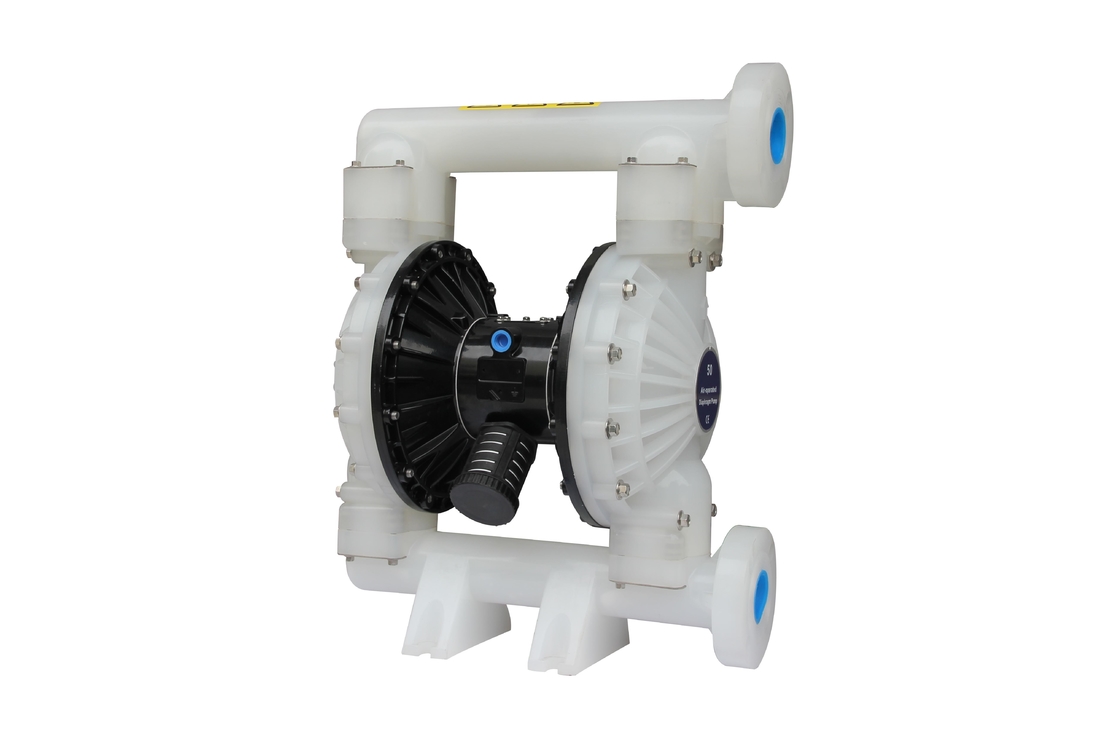

2 Inch Air Diaphragm Pump Acid Transfer 667L / Min Non Leakage

2 Inch Air Diaphragm Pump Acid Transfer Diaphragm Pump 667l/Min Non Leakage

Air Diaphragm Pump plastic materail with PTFE diaphragm,centre body Plastic, aluminum alloy optional!

Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that is on of positive displacement pump uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.

Specifications

Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP

BG50PP- X X - XX- X X    (model selection)

Flow rate.

Form of pipe mouth:A-BSP B-NPT(F) C-Flange

Diaphragm material:9 – Santoprene H – Hytrel   T - PTFE/Santoprene

Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal

Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel

Pump material: SS –Stainless Steel AL –Aluminum Alloy   CI- Carbon Steel P/K –Polypropylene/Kynoar

1. Pump peanut butter, pickles, mashed potatoes, sausage, jam, apple pulp, chocolate and so on.
2. Pump paint, gum, pigments.
3. Adhesives and glue, all kinds of pumps can be suck.
4. All kinds of tiles, porcelain, brick and pottery glaze.
5. After the oil well has been drilled, pump deposits and fill up.
6. Pump a variety of emulsion and packing.
7. Pump a variety of age.
8. Use pumps as oil tankers, barges clean up and draw in the warehouse's age.
9. Hop and fermented flour slurry, syrup, sugar dense.
10. Pump the water in the mine, tunnel, tunnel, mineral processing and slag. Pump the cement grouting and mortar.
11. All kinds of rubber pulps.
12. all kinds of abrasive, corrosive oil and mud, grease and general cleaning container.
13. All kinds of highly toxic, flammable and volatile liquids.
14. All kinds of strong acid, strong alkali, strong corrosion liquid.
15. All kinds of high temperature resistant liquid with the highest temperature of 150 DEG C.
16. As a variety of solid liquid separation equipment of the front stage pressure transmitter.

Maximum Applied Temperature Limits (diaphragm / ball / seal material)

Acetal ··············································  ·40°-         150°F        (4.4- 65.5°C)

Santoprene·········································  -40°- 225°F (-40°- 107.2°C)   ···············································     40°- 220°F (4.4°- 104°C)   Nitrile···················································10°- 180°F (-12°- 82°C)   Viton·····················································-40°- 350°F (-40°-176.6°C)   Hytrel···················································-20°-150°F (-12°- 93°C)   Kynar·················································· ·10°-200°F (-28.9°- 65.5°C)   Polypropylene··········································32°- 175°F (0-79.4°C)
