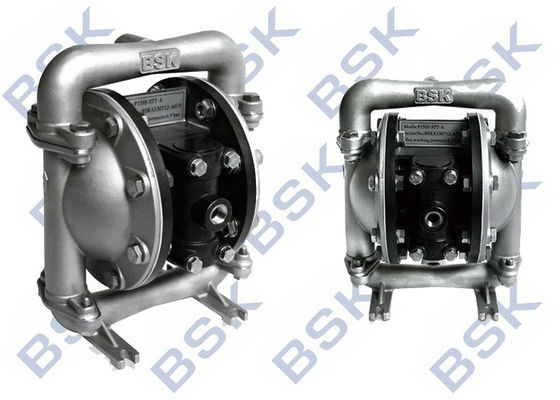

Pneumatic Dual Diaphragm Pump , Vacuum 2 Inch Diaphragm Pump
Application and Advantage:
Pneumatic diaphragm pumps are operated with compressed air . diaphragm pumps is suitable for pumping fluids with particles, and various liquids, which are highly viscous, volatile, corrosive or toxic, as well as colloids. The pump body is made of aluminum alloys, cast iron or stainless steel. The diaphragm is made of high quality rubber such as Nitrile rubber, chloronorgutta rubber, fluoroine rubber. The diaphragm pumps are widely used in the petroleum chemical, electronic, ceramic, food and textile industries.
Air diaphragm pump(also know as a Membrane pump, air operated double diaphragm pump(AOOD) or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or diaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Specifications
Air Diaphragm Pump
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene························································································-40°- 225°F (-40°- 107.2°C) ··································································································40°- 220°F (4.4°- 104°C) Nitrile···································································································10°- 180°F (-12°- 82°C) Viton································································································-40°- 350°F (-40°-176.6°C) Hytrel···································································································-20°-150°F (-12°- 93°C) Kynar································································································10°-200°F (-28.9°- 65.5°C) Polypropylene····························································································32°- 175°F (0-79.4°C)
1” Flow diagram
General Description
The diaphragm pump offers high volume delivery even at low air pressure and a b road range of material compatibility options available.Refer to the model and option chart.The pump is provided with the modularized air motor and fluid section.
The air operated diaphragm pump alternately generates the intake fluid pressure and positive fluid pressure in the fluid chamber by using the pressure difference in the air chamber. The ball valve can ensure the forward flow of fluid.
Pump cycling will begin as air pressure is applied and it will continue to pump and keep up with the demand. It will build and maintain line pres -sure and will stop cycling once maximum line pressure is reached (dis -pensing device closed) and will resume pumping as needed.
