Product Details:
Payment & Shipping Terms:
|
| Guarantee:: | One Year | Production: | Air Driven Diaphragm Pump |
|---|---|---|---|
| Weight: | 12.3kg | Noise Level: | ＜70db |
| High Light: | twin diaphragm pump,double acting diaphragm pump |
||

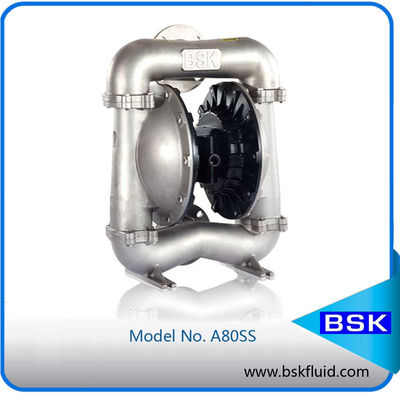

Stainless Steel Positive Displacement Pump Membrane Pumps 8.3bar
Air Driven Double Diaphragm Pump introduction
air operated double diaphragm pump is driven by air. It is a kind of positive displacement pumps which volume changes caused by compressing diaphragms in both side. This pump not only can exhaust the flow liquid, but also can convey some uneasy flowed medium, with the merits of self priming pump, slurry pump and impurity pump, etc.
Diaphragm Pumps (Air Operated Double Diaphragms)
Diaphragm Pumps are air or natural gas operated displacement pumps which uniquely differ from all other positive displacement pumps.
Air Driven Double Diaphragm Pump Parameters
| Item | Description | Unit | Reference Figure |
| 1 | Maximum air inlet pressure | Mpa | 0.83 |
| 2 | Maximum flow rate | L/Min | 192 |
| 3 | Maximum lift | M | 70 |
| 4 | Maximum outlet pressure | Mpa | 0.83 |
| 5 | Maximum particle size | mm | 3 |
| 6 | Weight | kg | 12.3 |
| 7 | Noise level | db | ＜70 |
Air Driven Double Diaphragm Pump Specifications
1. Non leakage
2. Good self priming performance
3. Convey all kinds of medium
4. Material:Cast steel,Alu,SS,PP
Air Driven Double Diaphragm Pump Usage
1. Pump peanut butter, kimchi, mashed potatoes, small red sausage, jam apple pulp, chocolate, etc.
2. Pumping paint, gum, and pigment.
3, adhesives and glue, all types can be pumped.
4, a variety of tiles, porcelain, bricks and pottery glaze.
5. After the oil well is drilled, pump the sediment and grout.
6. Pump various emulsions and fillers.
7. Pumping all kinds of age.
8. Use the pump as the tanker, and the barge clears the tank to absorb the age.
9, hops and fermented powder slurry, syrup, sugar dense.
10. Pumping water from mines, tunnels, tunnels, beneficiation, and slag. Pumping cement grout and mortar.
11, a variety of rubber pulp.
12. Various abrasives, corrosives, petroleum and mud, cleaning grease and general containers.
13, a variety of highly toxic, flammable, volatile liquids.
A 2 5 X X - X X X - X (model selection)
Form of pipe mouth:A-BSP B-NPT(F) C-Flange
Diaphragm material:9 – Santoprene H – Hytrel T - PTFE/Santoprene
Ball material:9 -Santoprene H – Hytre T – PTFE A - Acetal
Ball seat material:P/K –Polypropylene/Kynoar SS –Stainless Steel
Pump material: SS –Stainless Steel AL –Aluminum Alloy CI- Carbon Steel P/K –Polypropylene/Kynoar
Maximum Applied Temperature Limits (diaphragm / ball / seal material)
Acetal ···············································40°- 150°F (4.4- 65.5°C)
Santoprene·········································-40°- 225°F (-40°- 107.2°C) ·················································40°- 220°F (4.4°- 104°C) Nitrile··················································10°- 180°F (-12°- 82°C) Viton···················································-40°- 350°F (-40°-176.6°C) Hytrel··················································-20°-150°F (-12°- 93°C) Kynar····················································10°-200°F (-28.9°- 65.5°C) Polypropylene·········································32°- 175°F (0-79.4°C)
1” Flow diagram
